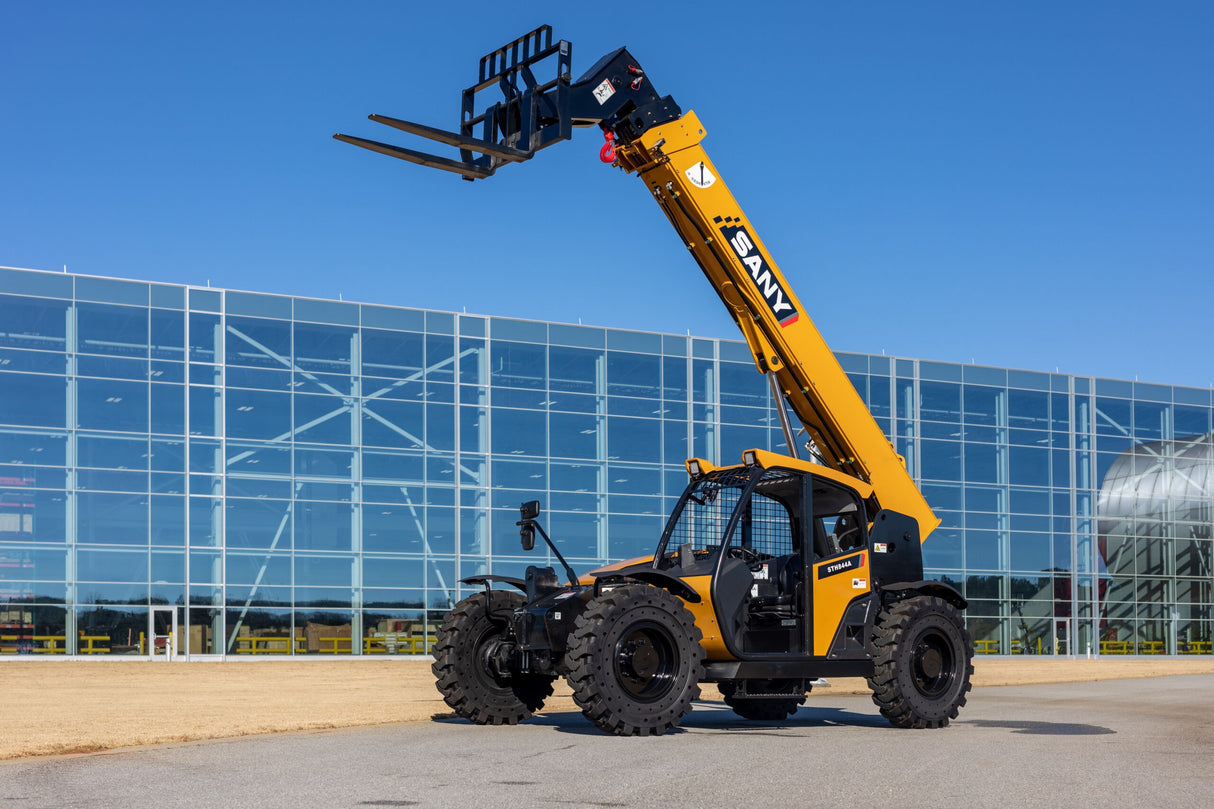

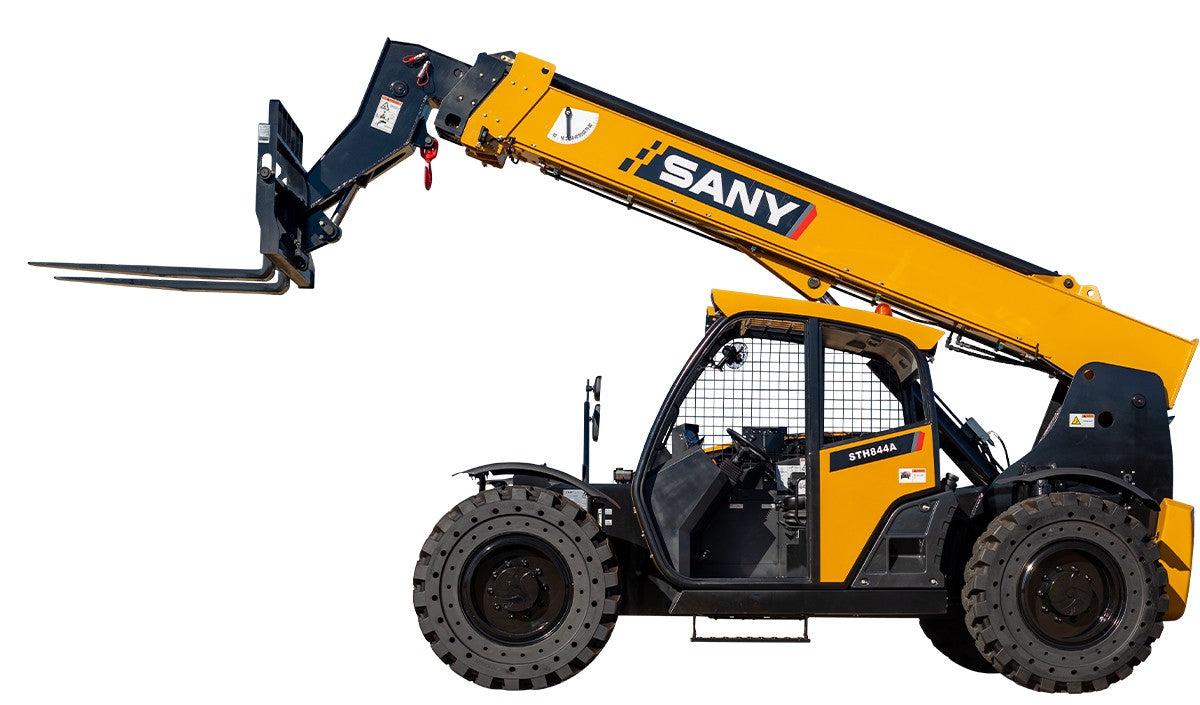

Description:

Specifications:

Overall Dimensions

• Maximum Lift Height: 13.40 m (44′ 0″)
• Maximum Forward Reach: 9.15 m (30′ 0″)
• Stowed Height: 2.54 m (8′ 4″)
• Stowed Length (Without Forks): 6.15 m (20′ 2″)
• Width: 2.46 m (8′ 1″)
• Wheelbase: 3.42 m (11′ 3″)
• Ground Clearance (Center): 0.46 m (1′ 6″)
• Ground Clearance (Axle): 0.43 m (1′ 5″)
• Operating Weight: 11,633 kg (25,647 lbs)

Performance

• Max Lift Capacity: 3,629 kg (8,000 lbs)
• Lift Capacity at Max Height: 2,722 kg (6,000 lbs)
• Lift Capacity at Max Reach: 681 kg (1,500 lbs)
• Boom Raise/Lower Time: 13 sec / 13 sec
• Boom Extend/Retract Time: 16 sec / 16 sec
• Frame Leveling Range: ±10°
• Max Drive Speed: 23 km/h (14 mph)
• Turning Radius (4WS): 4.30 m (14′ 1″)
• Standard Tires: 13.00-24

Hydraulic System

• Auxiliary Hydraulic Flow: 63 L/min (17 gpm)
• Auxiliary Hydraulic Pressure: 17 MPa (2,466 psi)
• Hydraulic Tank Capacity: 124 L (33 gal)
• Total Hydraulic System Capacity: 159 L (42 gal)

Fuel & Electrical

• Fuel Tank Capacity: 135 L (36 gal)
• Electrical System: 24V
• Engine Torque: 488 Nm (360 lb-ft)

Powertrain Components

• Engine: Deutz TCD 3.6
• Transmission: Dana VDT12000
• Front/Rear Axles: Dana 212 / Dana 212
• Hydraulic Pump: Kawasaki Load Sense Piston Pump
• Hydraulic Manifold: Parker
