With working heights ranging from 41 feet to 61 feet and useable both indoors and outdoors, Haulette trailer mounted booms are the most popular type of platform with skilled tradesman and local communities.
-

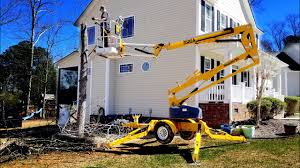

41’ Haulette Towable Boom – 3522A
-
61’ Haulette Towable Boom – 5533A
-
41’ Haulette Towable Boom – 3522A
41’ Haulette Towable Boom – 3522A
Rental Pricing:
- Day = $200
- Week = $800
- Month = $2400
- Weekend = $300
Description:
With a working height of 41 feet and useable both indoors and outdoors, the 3522 A trailer mounted boom is the most popular type of platform with skilled tradesmen and local communities. The compact and lightweight design make them towable to any site, no CDL required. Hydraulic outriggers set-up in less than 30 sec for safe work on uneven ground.
Specifications:
- Widest Point: 12 ft 2 in
- Turntable rotation: 350° non-continuous
- Jib - length: 4 ft 3 in
- Jib - Vertical Motion: 150° (+70 / - 80)
- Tow speed rating: 65 mph
- Leveling capability: 12.5°
- Tire size: ST 225 / 75 D15
- Power source: 4 x 6 V 245 amp-hr
- Tongue weight (no options): 245 lb
- Weight (no options): 3,400 lb
- Working height: 41 ft 9 in
- Platform height: 35 ft 9 in
- Horizontal outreach (from centerline): 22 ft 6 in
- Horizontal outreach (from edge of footpad): 17 ft 5 in
- Up and over height: 19 ft
- Lift capacity: 500 lb
- Length - stowed: 16 ft 3 in
- Width stowed: 5 ft 6 in
- Height stowed: 6 ft 8 in
- Platform size: 4 ft 1 in x 2 ft 9 in
- Widest Point: 11 ft 10 in

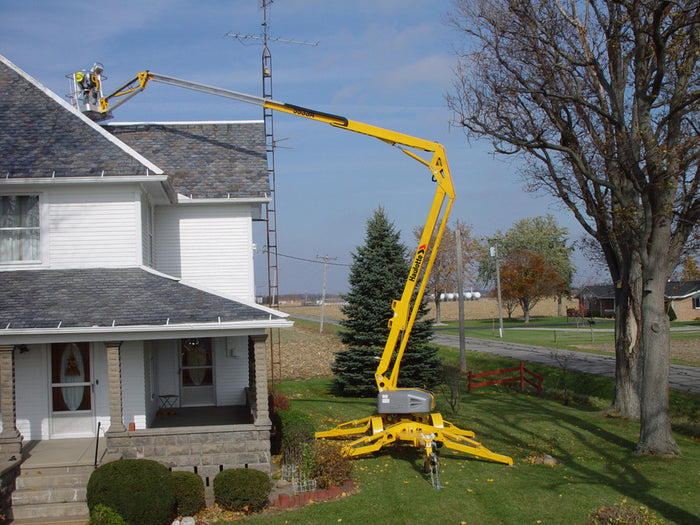

61’ Haulette Towable Boom – 5533A
61’ Haulette Towable Boom – 5533A
Rental Pricing:
- Day = $300
- Week = $1200
- Month = $3600
- Weekend = $500
Description:
With a working height of 61 feet and useable both indoors and outdoors, the 5533 A trailer mounted boom is the most popular type of platform with skilled tradesmen and local communities. The compact and lightweight design make them towable to any site, no CDL required. Hydraulic outriggers set-up in less than 30 sec for safe work on uneven ground.
Specifications:
- Working height: 61 ft 3 in
- Platform height: 55 ft 3 in
- Horizontal outreach (from centerline): 33 ft 5 in
- Horizontal outreach (from edge of footpad): 27 ft 4 in
- Up and over height: 23 ft 1 in
- Lift capacity: 500 lb
- Length - stowed: 23 ft 8 in
- Width stowed: 5 ft 7 in
- Height stowed: 6 ft 9 in
- Platform size: 4 ft 1 in x 2 ft 9 in
- Widest Point: 14 ft 8 in
- Widest Point: 15 ft
- Turntable rotation: 350° non-continuous
- Jib - length: 4 ft 3 in
- Jib - Vertical Motion: 150° (+ 70 / - 80)
- Tow speed rating: 65 mph
- Leveling capability: 12.5 °
- Tire size: ST 225 / 75 R15
- Power source: 4 x 6 V 245 amp-hr
- Tongue weight (no options): 335 lb
- Weight (no options): 4,800 lb
