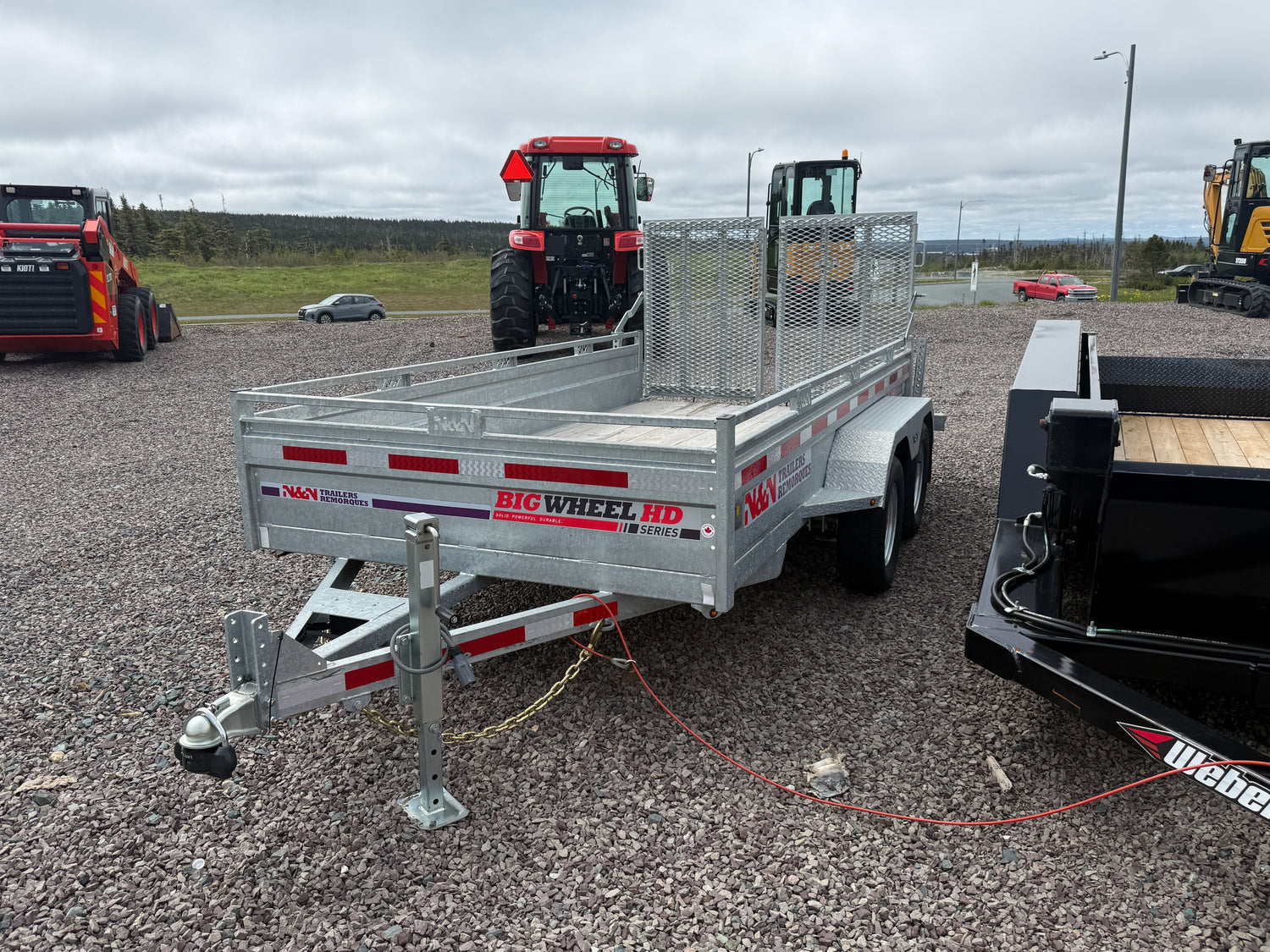

N&N Big Wheel HD Series - model T72147HD7K

THE N&N ADVANTAGE

A Big Wheel HD Series trailer is the only
trailer you’ll ever really need! Its numerous
design features make it as tough as our dump
trailer, and its size is perfect for home use and
light construction or farm work.

Standard Features
• Fully welded frame and panels
• Rear split mesh gate 35"× 48"
• Cross members on 16" C/C
• Heat shrink connector
• Cold-weather harness
• Galvanized axle
• Slipper spring suspension
• 2"× 8"spruce floor
• 4 tie-down hooks
• Stabilizer legs
• Radial tires on galvanized rims
• Rectangular 2" × 3" × ⅛" tubing frame
• LED lights
• Welded “A” tongue
• Adjustable coupler – 5 positions
• 16" high side + 19 ½" rail
• 21" ground clearance

Specifications
USABLE WIDTH - 72 inches
USABLE LENGTH - 147 inches
AXLES - 2 × 3,500 lb
BRAKES - Optional
TIRES - ST-205/75R14
WEIGHT WHEN EMPTY - 1,250 lb
LOAD CAPACITY - 1,610 lb
TRAILER LENGTH - 197 inches
TRAILER WIDTH - 90 inches
DECKING - 2" × 8" spruce planks
RAMP CAPACITY - 4,500 lb (stand-up split gate)
FINISH - Hot dipped galvanized

*Images may not be exactly as shown.
