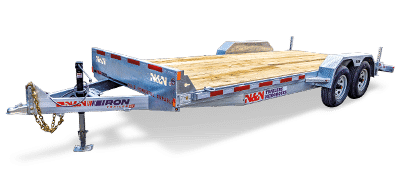

N&N Lowbed Sequoia Series 7'x16' 10k
Regular price
$10,995.00
Unit price
/
Unavailable
Core Specifications
Dimensions: 6.8 feet (82 inches) wide by 16 feet long.
Axle Capacity: Dual 5,200 lb galvanized electric braking axles (yielding a gross rating class colloquially referred to as "5100" or 10K GVWR).
GVWR: Approximately 9,820 lbs to 10,000 lbs.
Payload Capacity: Manages roughly 7,500 lbs to 7000 lbs of usable cargo weight depending on the exact rear gate configuration.
Key Features
Corrosion Resistance: The entire frame structure undergoes a complete hot-dip galvanization process, giving it unmatched long-term protection against rust, salt, and moisture compared to traditional painted steel.
Rugged Frame Engineering: Built on a 5-inch channel frame with a 6-inch channel pole and 3-inch C-channel cross members spaced at 16 inches center-to-center for high structural rigidity.
Loading Layout: Standardized with a low 23-inch deck height for easy loading angles, complemented by rear stabilizer/loading legs that stop the towing vehicle from lifting when heavy machinery drives up.
Premium Decking: Outfitted with robust 2x8 spruce or hemlock plank decking capable of taking heavy point-loads from tires and tracks.
Electrical & Tiedowns: Standard LED lighting with cold-weather wiring running completely inside the protective hollow structural tubing to eliminate short circuits. Integrated tie-down hooks and stake pockets outline the frame for flexible load securing.
