Description:

Specifications:

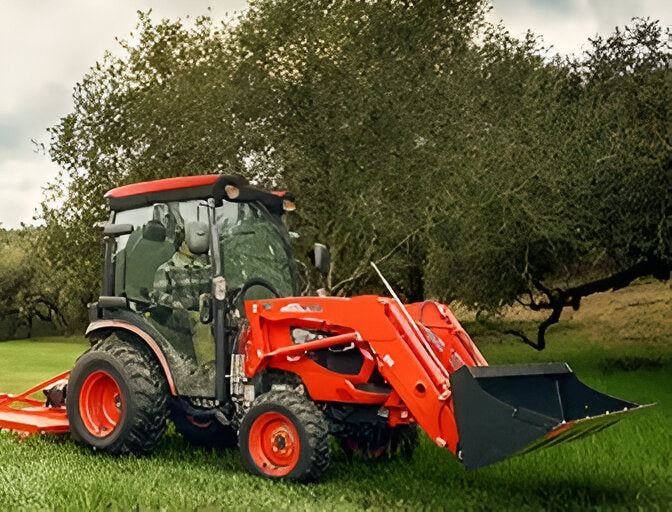

• Models: KL4030
• Compatibility: Fits CK and CKSE Series tractors

Performance:

• Lift Height Max Pivot Pin: 98.40 in (2,500 mm)
• Clearance Level: 93 in (2,360 mm)
• Clearance Dumped: 79.10 in (2,010 mm)
• Reach at Max Height: 27.20 in (690 mm)
• Dump Angle Max: 48°
• Reach at Ground: 62.20 in (1,580 mm)
• Rollback Angle Max: 28°
• Digging Depth: 5.30 in (135 mm)
• Height Max in Carry Position: 49.60 in (1,260 mm)

Capacity:

• Lift Capacity to Full Height: 1,835 lb (832 kg)
• Breakout Force at Pivot Pin: 3,464 lb (1,571 kg)
• Bucket Rollback Force at Ground: 1,763.70 lb (800 kg)
• Relief Valve Setting: 2,560 psi (176.50 bar)
• Rated Flow: 6.90 gpm (26.12 lpm)
• Bucket Capacity Heaped: 9.39 ft³ (0.22 m³)
• Bucket Size: 60 in (1,524 mm)

Weight:

• Weight: 959 lb (435 kg)
