Description:

Specification:

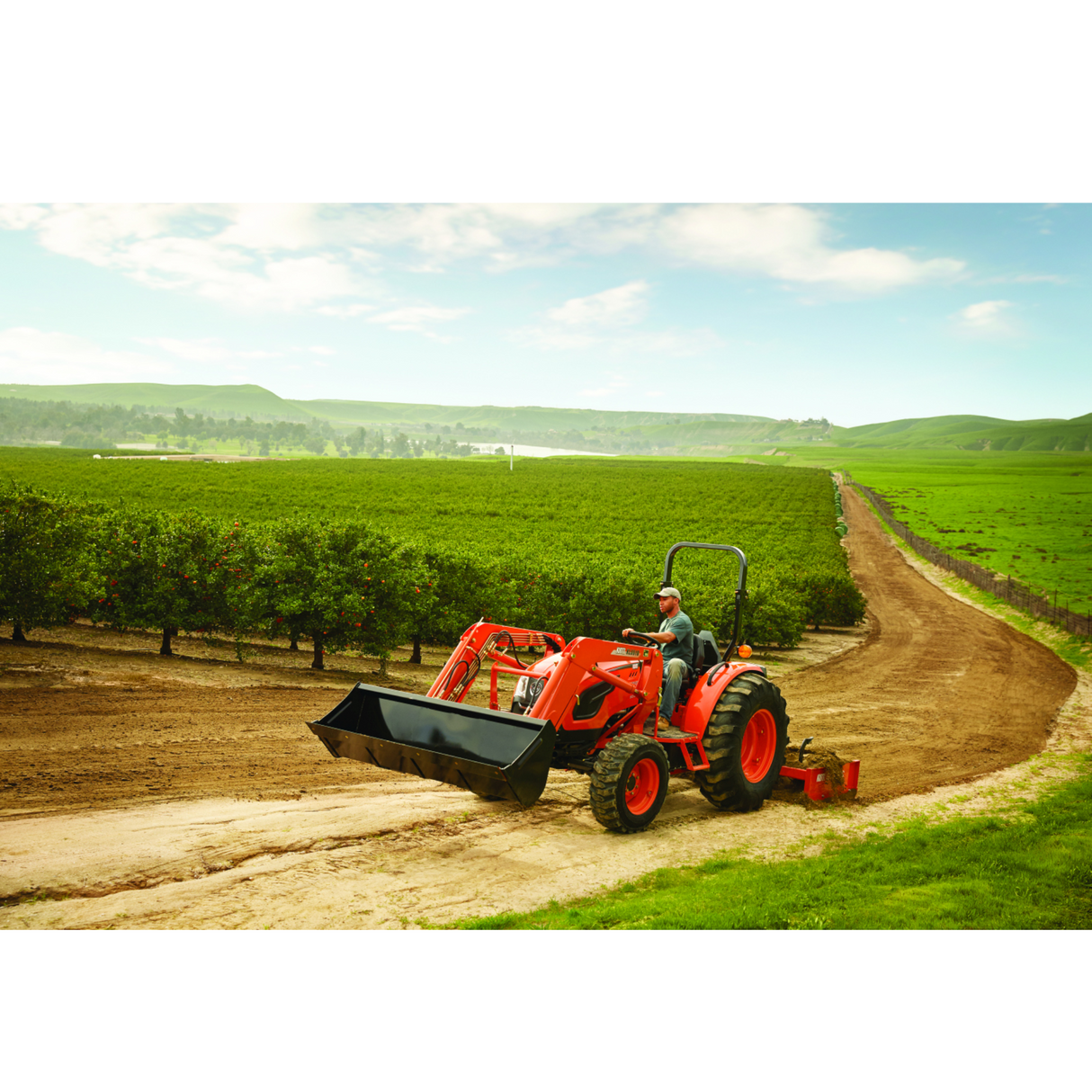

• Compatibility: Fits the DK20SE Series
• Lift Height Max Pivot Pin: 107.70 in (2,735 mm)
• Clearance Level: 96.30 in (2,446 mm)
• Clearance Dumped: 78.80 in (2,001 mm)
• Dump Angle Max: 46°
• Reach at Ground: 71.10 in (1,806 mm)
• Rollback Angle Max: 41°
• Digging Depth: 8.60 in (218 mm)
• Height Max in Carry Position: 54 in (1,371 mm)
• Bucket Depth: 18.50 in (470 mm)
• Height: 22 in (560 mm)
• Length: 26 in (660 mm)
• Lift Capacity to Full Height: 2,474 lb (1,122 kg)
• Breakout Force at Pivot Pin: 3,895 lb (1,767 kg)
• Bucket Size: 72 in (1,828.80 mm)
• Weight: 946 lb (429 kg)
• Relief Valve Setting: 2,273 psi (195 bar)
• Rated Flow: 4.20 gpm (16 lpm)
• Bucket Capacity Heaped: 10.10 ft³ (0.28 m³)
