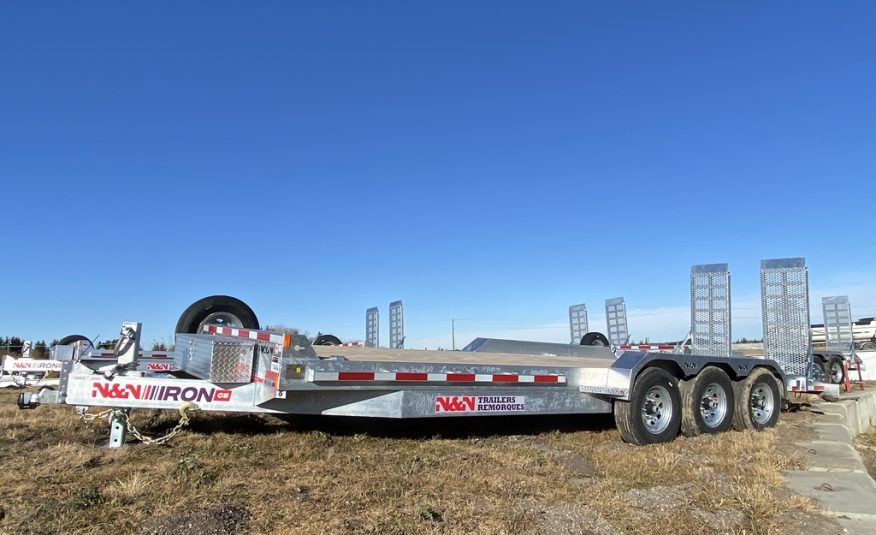

N&N C8 IRON HD Series - model ICHHD24G21K

7 X 24 HD Car Hauler

• Model Number: C8-ICHHD24G21K
• Overall Size: Approx. 82" (usable width) x 24' (length)
• GVWR: 21,000 lbs (Approx. 9,500 kg)
• Payload Capacity: Approx. 16,000 lbs - 16,500 lbs (depending on specific configuration and options)
• Trailer Length: 24 ft
• Usable Deck Length: 22' + 2' dove tail (approx)
• Usable Width: 82 inches

• Finish: Hot-dipped galvanized
• Axles: Triple 7,000 lb (3 x 7,000 lbs) galvanized axles
• Brakes: Electric brakes on all axles
• Suspension: Slipper spring suspension
• Tires: ST235/80R16 10-ply or 14-ply tires, 8-bolt galvanized rims
• Frame: 8-inch channel frame
• Cross Members: 16" C/C
• Floor: 2x8 Hemlock decking

• Coupler: 2-5/16" adjustable coupler
• Jack: 12,000 lb "Drop Leg" jack
• Ramps: Stand-up ramps (approx. 24" x 60")
• Wiring: Voltflex Wiring cold weather harness
• Lights: Fully LED lighting
• Tie Downs: 6 x lashing rings / welded D-rings
• Stability: Rear stabilizer legs
• Fenders: Checkerplate step fenders
• Front Storage: Aluminum front storage box (optional/included depending on spec)
