N&N Tilt Gravitor Series 8.5'x16' tri-axle
Regular price
$23,995.00
Unit price
/
Unavailable

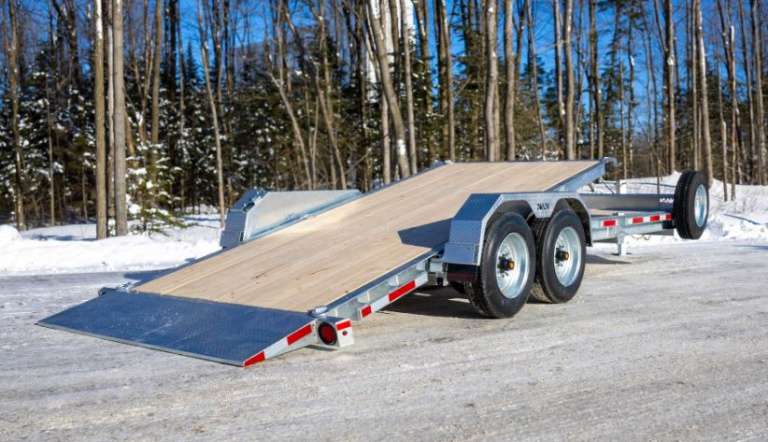

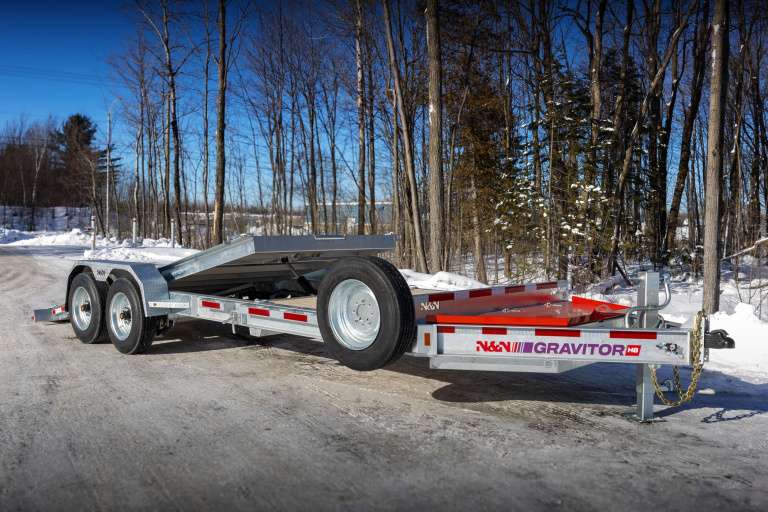

The N&N Gravitor series, particularly the Gravitor H8, GRAH8-724G307 is a line of heavy-duty, hot-dipped galvanized, gravity-tilt platform trailers designed for hauling compact equipment, machinery, and vehicles without the need for traditional ramps.
Key Features of the Gravitor Series
- Gravity Tilt System: Features a central hydraulic cylinder that utilizes gravity to initiate and control the descent of the platform, allowing for easy, one-person loading.
- Split Tilt Design: Typically includes a 6-foot to 8-foot fixed front deck and a 16-foot tilting rear section (on 22–24 ft models), providing superior load distribution and versatility.
- 8-inch H-Beam Frame: Built on a robust 8-inch H-beam frame for increased longevity and structural strength.
- Galvanized Finish: Hot-dipped galvanization offers superior, long-lasting rust protection.

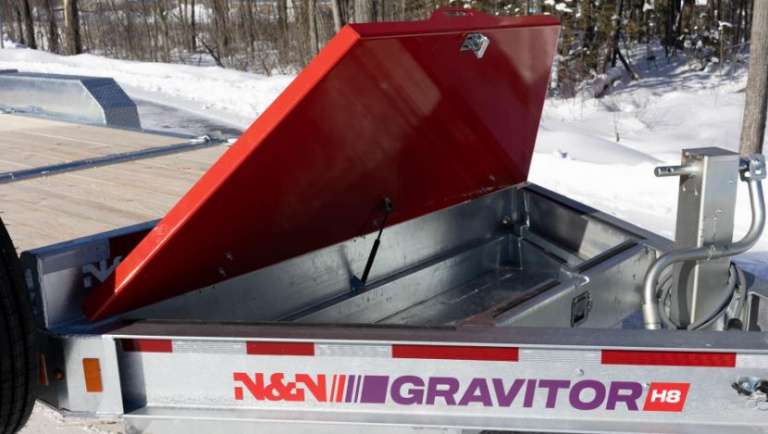

- Integrated Storage: Comes standard with a large front storage box (e.g., 13" x 16" x 48") to store tools and equipment.
Specifications (Gravitor H8 Series)
- Width: 82 inches between fenders (approx. 102" overall).
- Lengths: Available in 22 ft and 24 ft configurations.
- Axles: Typically equipped with two or three 7,000 lb axles (Tandem or Tridem).
- GVWR: Commonly 14,000 lb to 21,000 lb+ capacity (based on axle configuration).
-
Decking: Durable Hemlock plank decking.
Action Trailers +4
Specific Model Highlights
- Gravitor H8 (3-Axle): Known for its three 7,000 lb axles, providing high stability and handling for heavy loads.
- Low Tilt Angle: The design offers a very low angle to facilitate easy loading of low-clearance equipment.
-
Standard Features: Include LED lighting, adjustable couplers, and high-quality tires (e.g., 14-ply).
N&N Remorques +2
The series is designed for users needing to move heavy equipment frequently and safely without relying on heavy and cumbersome loading ramps.
