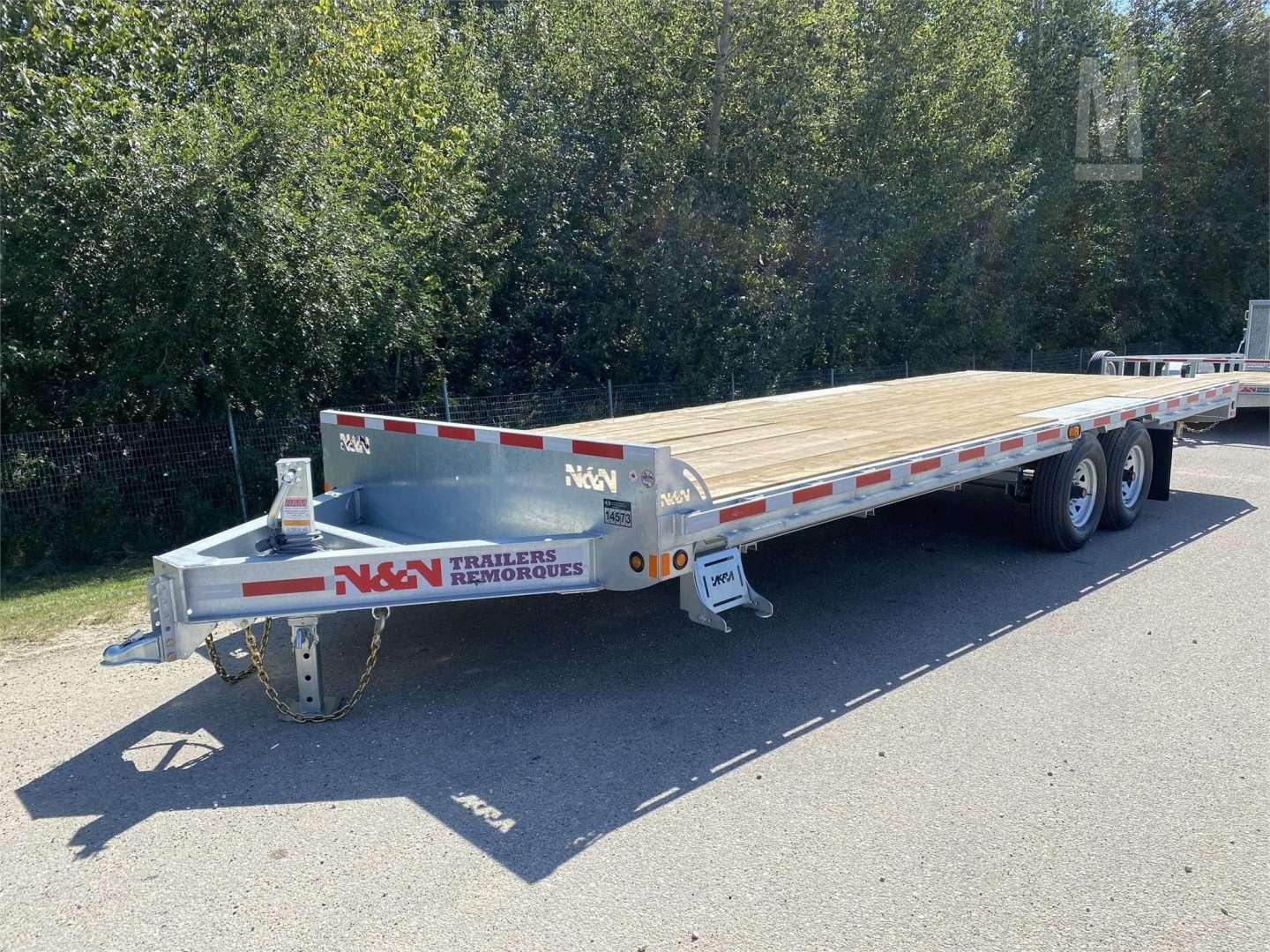

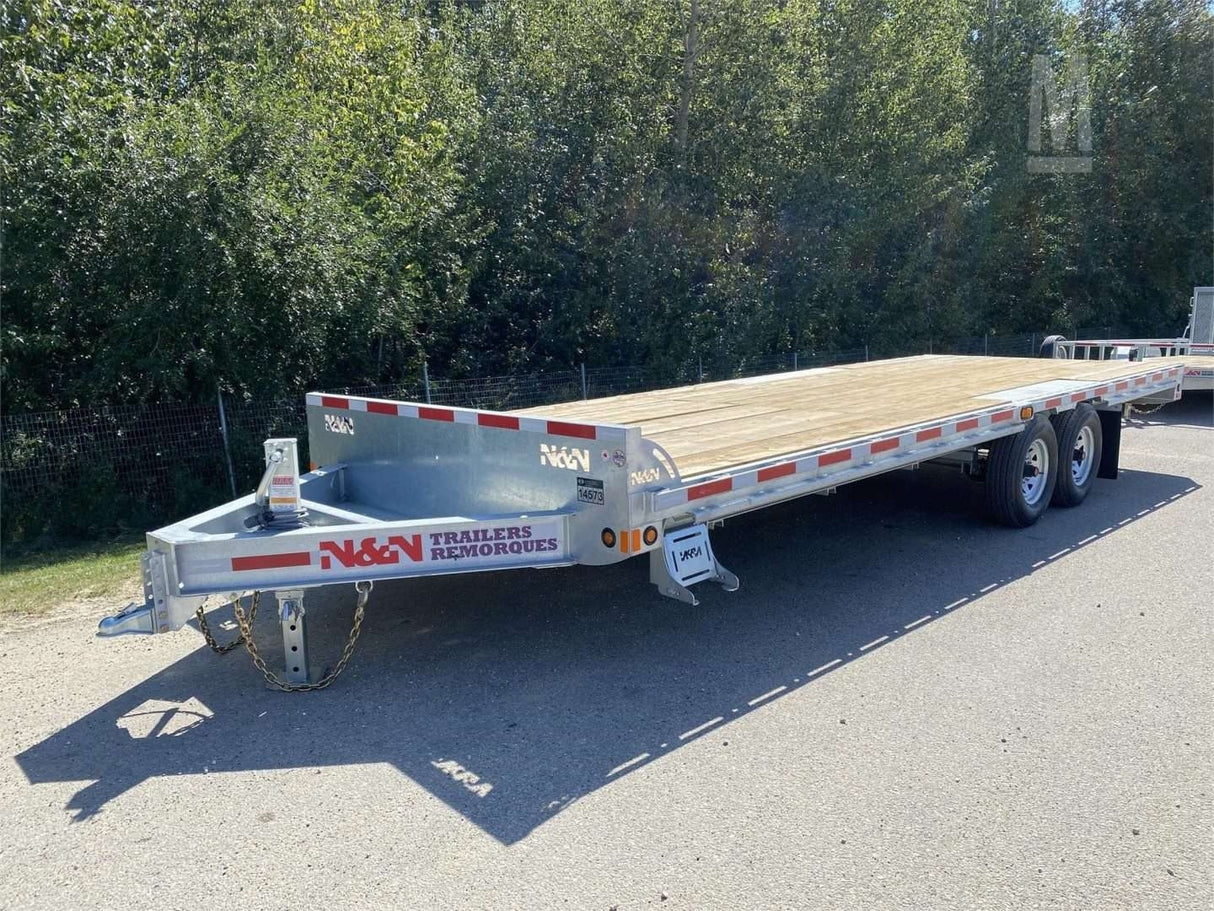

The 2026 N&N PACKHD20G15K is a 20-foot, hot-dipped galvanized deck-over flatbed trailer designed for heavy-duty industrial and commercial use, often referred to as a "7.5 Ton" trailer. It features a high-capacity structure designed to handle large equipment or palleted goods, featuring a 36-inch deck height, 8-inch H-beam main frame, and hemlock wood flooring.
Key Features & Description
- Structure: Hot-dipped galvanized steel, 8-inch H-beam main frame with 3-inch C-channel cross members on 16" centers.
- Decking: Durable hemlock wood planks.
- Dimensions: 8.5 feet (102 inches) overall width, with a 97.5-inch usable deck width (excluding rub rails).
- Ramps: Rear slide-out 90-inch ramp kit available for additional fee.
- Components: 12k galvanized drop-leg jack, 2 5/16" adjustable coupler, and LED lighting.
- Storage: Front lockable lid toolbox on the tongue, with additional under-body 48" x 16" x 13" side-mount toolbox.
-
Tie Downs: Stake pockets and rub rails on both sides, plus side-mount strap rail with 3-inch winches & straps.
Specifications
- Model: PAKH8-820G207 (PACKHD20G15K)
- GVWR: 14,969 lbs (6,804 kg)
- Payload Capacity: Approx. 11,000+ lbs (11,277 lbs / 5,126 kg)
- Trailer Weight: Approx. 3,692 lbs (1,678 kg)
- Axles: Tandem 7,000 lbs (galvanized)
- Brakes: Electric on all wheels
- Tires: ST235/80R16 14-ply radial tires on galvanized rims
-
Deck Height: 36 inches
