Description:

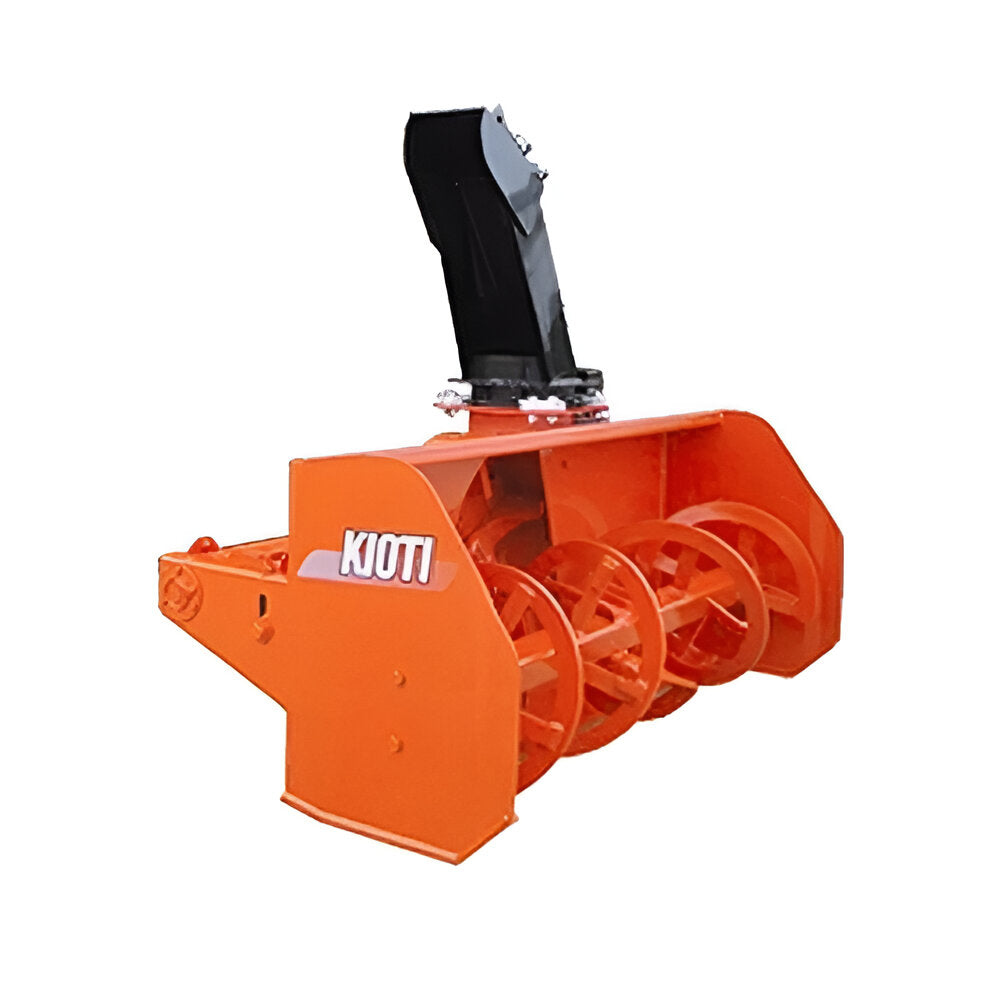

Clear the way with KIOTI front mount snow blowers. They quickly hitch to the sub-frame for easy mounting and operate on a mid-mount PTO drive, offering plenty of snow blasting power. All units come with a 12-month warranty. Specifications and design are subject to change without notification.

Specifications:

• Model: SB66
• Product Description: 66" Snow Blower
• KIOTI Recommended Units: CK27, CK30, CK35, CK3510, CK3510H, CK4010, CK4010H
• Recommended PTO: 20-40 hp

Dimensions

• Cutting Width: 66"
• Cutting Height: 25”
• Lift Height: +11”, -5”
• Length: 38”
• Width: 66”
• Height: 55”
• Weight: 842 lbs

Fan Specifications

• Fan RPM: 702
• Fan Diameter: 22”
• Fan Shaft Diameter: 1 1/4"
• Fan Depth: 7”
• Fan Center Height: 14”
• Balanced Fan: Standard
• Number of Blades: 4

Auger Specifications

• Main Auger Diameter: 15”
• Balanced Auger: Standard

Chute Specifications

• Hydraulic Chute Rotation on Polyethylene: Standard
• Discharge Chute Angle: 282º
• Manual Chute Deflector: Standard
• Hydraulic Chute Deflector: Optional
• Electric Chute Deflector: Optional
• Chute 1 Deflector: Standard
• Chute 2 Deflector: Optional

Edge & Shoes

• Removable and Replaceable Cutting Edge: Reversible blade, .375” x 2” Standard
• Fixed Cutting Edge: Not applicable
• Lateral Skid Shoes: Adjustable

Drive & Safety

• PTO Shaft Number: 6E drive shaft
• Driving Chain Number: 50
• Number of Safety Bolts: 2

Special Features

• Special hitch attach & drive kit for KIOTI: Standard
