Description:

Clear the way with KIOTI front mount snow blowers. They quickly hitch to the sub-frame for easy mounting and operate on a mid-mount PTO drive, offering plenty of snow blasting power. All units come with a 12-month warranty. Specifications and design are subject to change without notification.

Specifications:

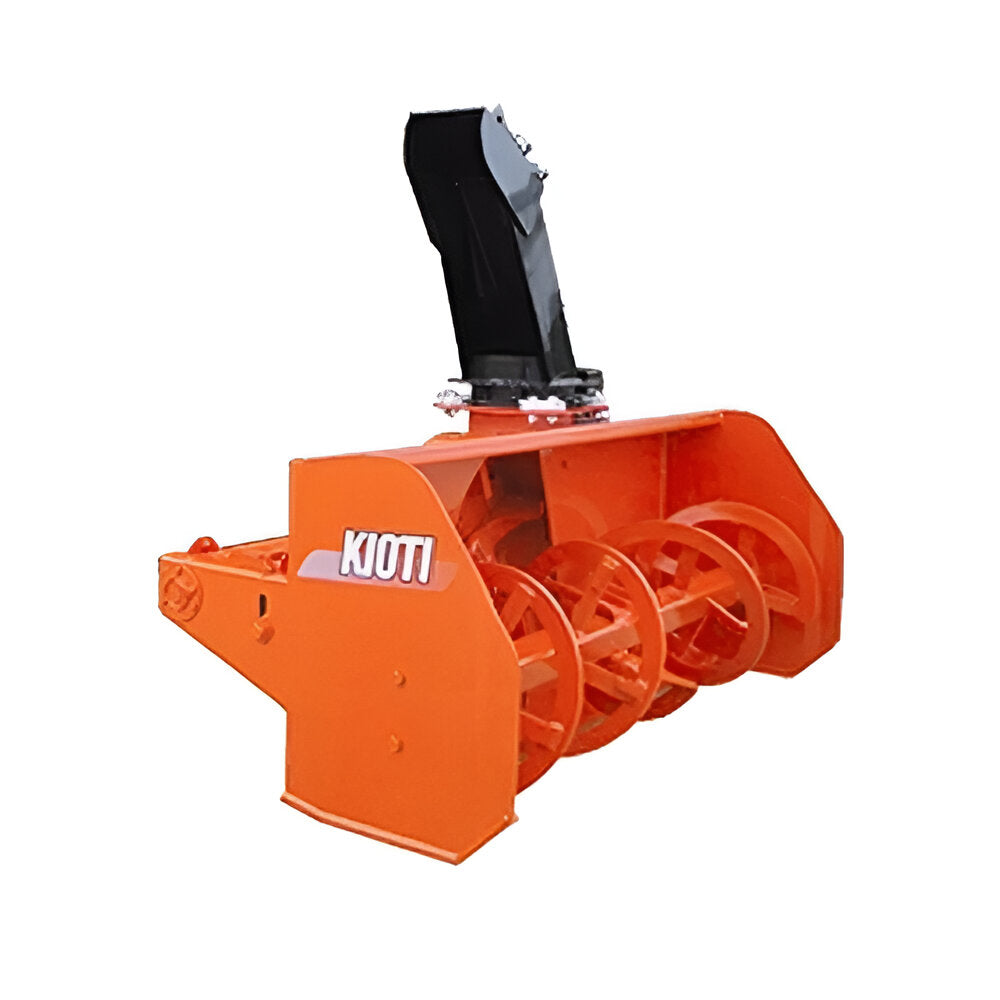

• Model: SB72
• Product Description: 72" Snow Blower
• Recommended Units: KIOTI DKSE & NX Series
• Recommended PTO: 25-40 hp

Dimensions

• Cutting Width: 72"
• Cutting Height: 27 1/2"
• Lift Height: +11", -5"
• Length: 39"
• Width: 72"
• Height: 57"
• Weight: 1,108 lbs

Fan & Auger

• Fan RPM: 719
• Fan Diameter: 24"
• Fan Shaft Diameter: 1 1/4"
• Fan Depth: 37 1/2"
• Fan Center Height: 15"
• Balanced Fan: Standard
• Number of Blades: 4
• Main Auger Diameter: 15"
• Balanced Auger: Standard

Chute & Deflector

• Hydraulic Chute Rotation (Polyethylene): Standard
• Discharge Chute Angle: 282º
• Manual Chute Deflector: Standard
• Hydraulic & Electric Chute Deflector: Optional
• Chute 1 Deflector: Standard
• Chute 2 Deflector: Optional

Cutting Edge & Skid Shoes

• Removable and Replaceable Cutting Edge: Reversible blade 0.375" x 2" (Standard)
• Lateral Skid Shoes: Adjustable

Drive & Safety

• PTO Shaft Number: 6E drive shaft
• Driving Chain Number: 50
• Number of Safety Bolts: 2
• Special Hitch Attach & Drive Kit for KIOTI: Standard
