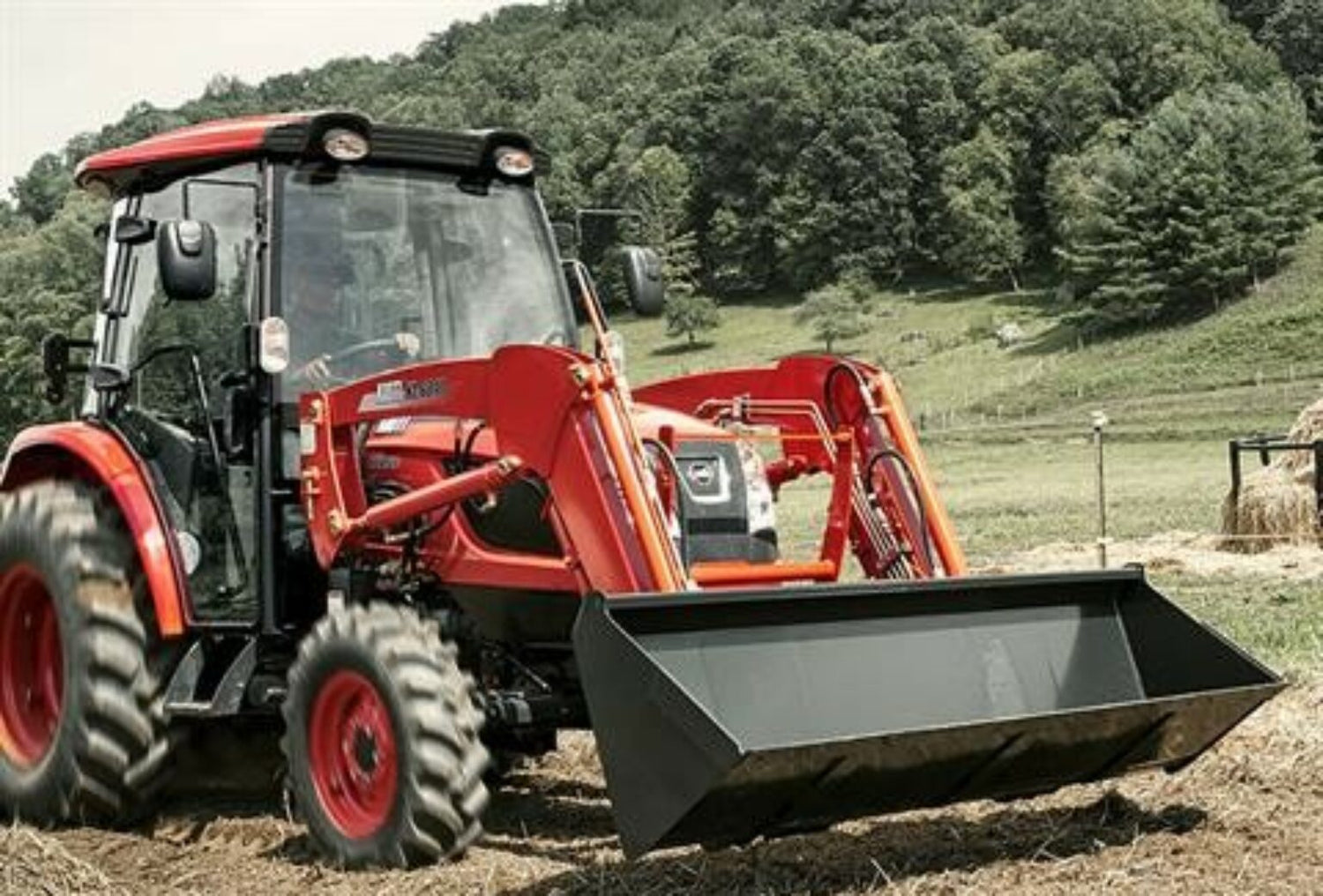

The Kioti KL1155QA-1 is a heavy-duty, quick-attach front-end loader designed exclusively for the Kioti HX Series utility tractors (HX9010 and HX1151). It is highly prized in agricultural and heavy landscaping operations for its massive lift height, high breakout force, and convenient quick-attach (QA) implement system.
- Lift Capacity (to full height at pivot pins): 4,316 lbs (1,958 kg)
- Maximum Lift Height (to pivot pins): 150.6 inches (3,825 mm)
- Breakout Force (at pivot pins): 8,397 lbs (3,809 kg)
- Clearance (with bucket dumped): 114.6 inches (2,911 mm)
- Maximum Dump Angle: 59 degrees
- Digging Depth: 8.7 inches (220 mm)
- Rated Flow: 10 gpm (37.9 L/min) @ 2,600 psi
- Weight: 617 lbs (279.8 kg) (loader only)
Standard Design & Implement Features
- Quick-Attach (QA) Bucket: The "-1" (or QA) designation signifies it comes equipped with a quick-attach mechanism, allowing operators to rapidly swap the standard 90-inch, 26.2 cubic-foot heaped bucket for other implements (like bale spears or grapple attachments) without leaving the tractor.
- Single-Lever Joystick Control: Integrates seamlessly with the tractor'sHX Series hydraulic system for smooth, multi-function control (lift, lower, dump, rollback, and float modes).
- Built-in Parking Stand: Allows the operator to easily detach and park the loader without needing extra tools, opening up access to the tractor’s mid-mount engine bay.
- Bucket Level Indicator: A standard visual gauge built into the loader arm so the operator knows exactly when the bucket is level with the ground.
