2026 SANY STH1056A2 Telehandler
Regular price
$208,281.00
Unit price
/
Unavailable

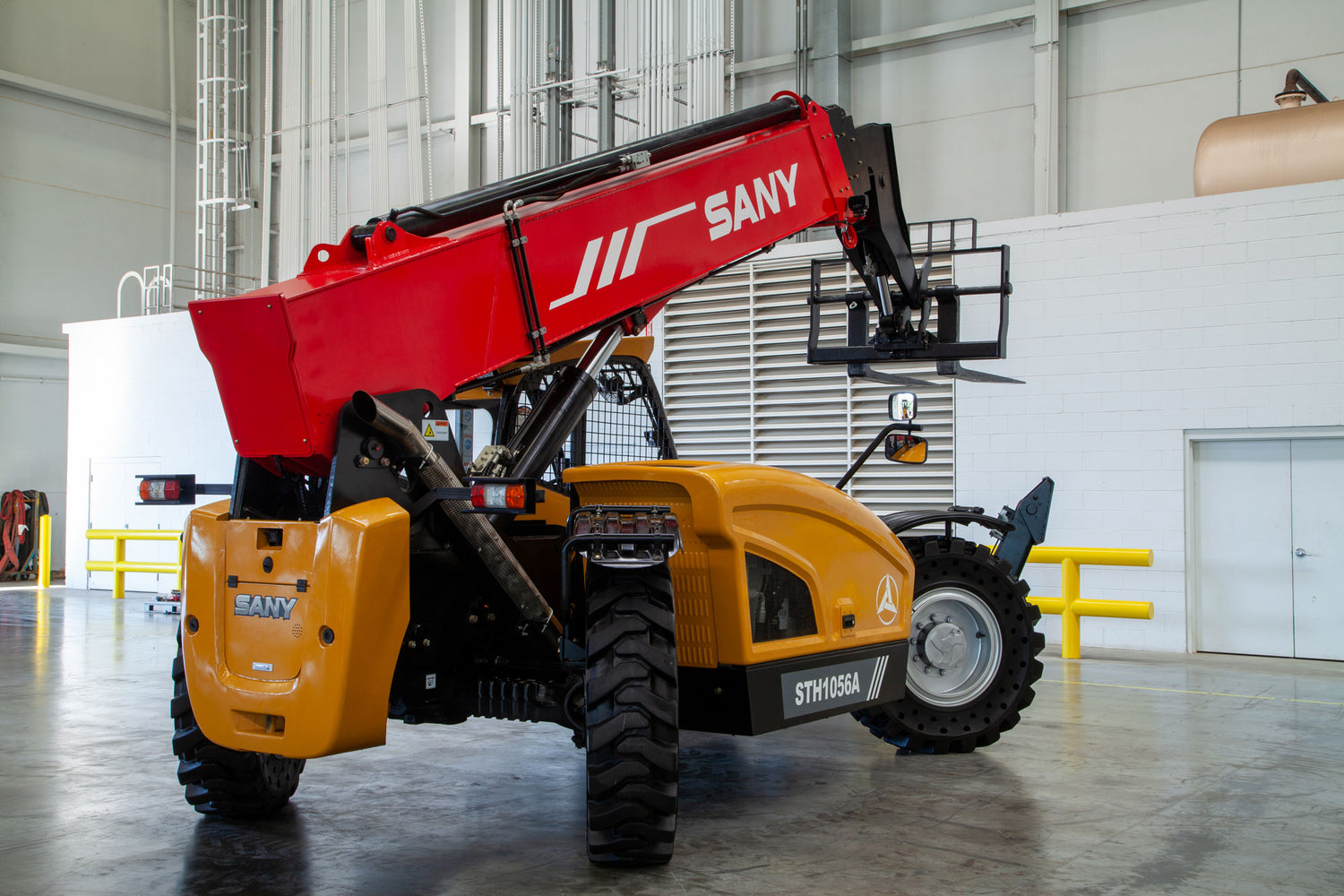

The 2026 SANY STH1056A2 is a high-capacity telehandler with a 10,000 lb (4,536 kg) max lift capacity, a maximum lifting height of 56' 2" (17.1 m), and a maximum forward reach of 42'. Powered by a 130 hp Cummins QSF3.8 T4F engine, it features a Dana T12000 powershift transmission and an operating weight of 15.3 tons. [1, 2, 3, 4]
Performance and Capabilities
- Maximum Lifting Height: 17.1 m (56' 2")
- Maximum Lift Capacity: 10,000 lbs (4,536 kg)
- Capacity at Max Height: Approx. 5,000 lbs (2,267 kg)
- Capacity at Max Reach: Approx. 3,000 lbs (1,361 kg)
- Maximum Forward Reach: 42' (Approx. 12.8 m)
- Maximum Travel Speed: 32 km/h (19.9 mph)
Engine and Drivetrain
- Engine: Cummins QSF3.8 T4F (Tier 4 Final)
- Power: 97 kW (130 hp) @ 2,200 rpm
- Transmission: DANA T12000 Powershift
- Axles: DANA AXLE 212HY/223
Dimensions and Design
- Operating Weight: 15.3 t (15,300 kg)
- Overall Length (without forks): 6.28 m (20' 7")
- Overall Width: 2.59 m (8' 6")
- Wheelbase: 3.49 m (11' 5")
- Turning Radius: 4.3 m (14' 1")
Features
- Hydraulic System: Quick-attach system for various attachments
- Safety: Longitudinal Load Moment Control (LLMC) with real-time display of load and boom position
- Visibility: Improved sightlines with a rear-view camera
This heavy-duty telehandler is commonly used in construction, agriculture, and industrial material handling.
